Toro Vibratory Plow Attachment

  • Toro Vibratory Plow Attachment
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Convenient depth-indicator
  • Pull pipe up to 2" diameter
  • 12" and 18" blades available
  • Elliptical vibrating motion

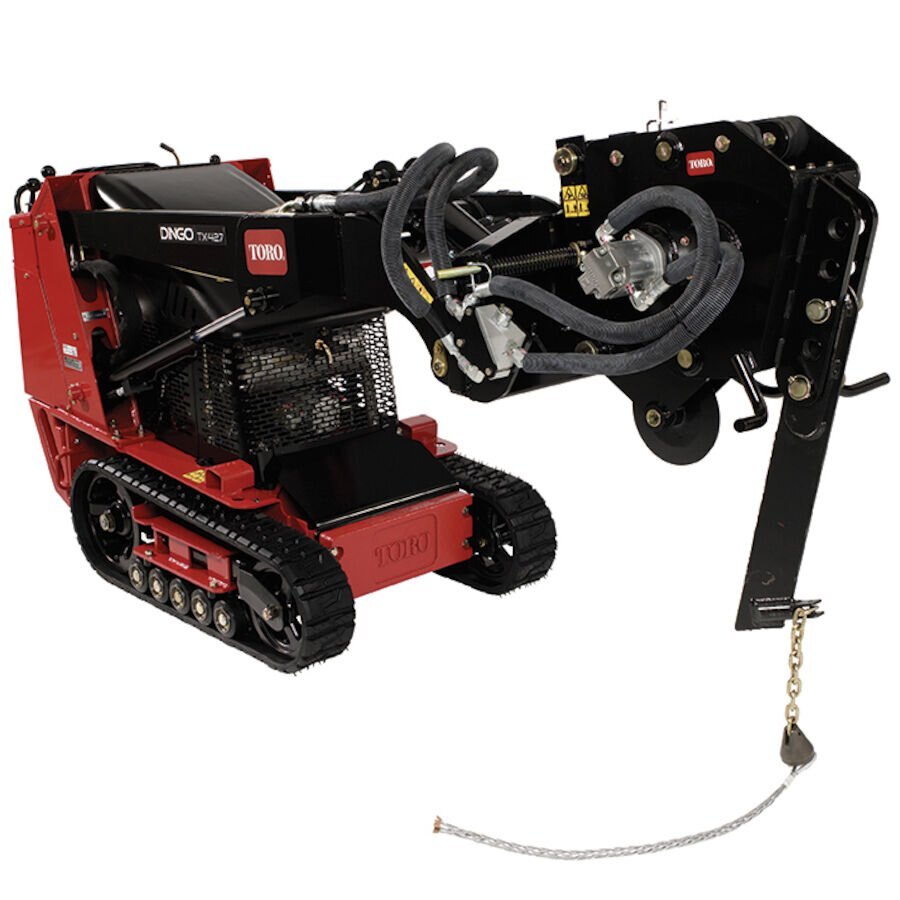

The Toro® Dingo® vibratory plow attachment greatly reduces a contractor's time spent on irrigation and cable installations. Exclusively designed and built by Toro specifically for use on the Dingo, the vibratory plow optimizes pipe-pulling performance while minimizing turf damage during an installation. Also, use the chuted blade and spool carrier to install wire or cable.
Specifications
Model
22911
Category Name
Lawn / Garden
Year
2026
Sale Type
New
Manufacturer
Toro
Chain
Machined, plated 2" (5 cm) hex bullet
Width
29 in. / 73.6 cm
Height
24 in. / 60.9 cm
Length
35 in. / 88.9 cm
Models
Dingo 320-D, Dingo 323, Dingo TX 1000, Dingo TX 1000 TURBO, Dingo TX 1300, Dingo TX 427, Dingo TX 525, Dingo TX 700
Weight
400 lbs / 181 kg
UPC/EAN
21038229119
Construction
Fabricated, Welded Steel Frame
Depth Control
Adjustable
Float Distance
5 in. / 12.7 cm
Mounting Frame
Dingo® Quick-Attach Mount Plate, Fabricated, Welded Base
Quick Couplers
Dripless, Flush Face Quick Couplers
Blade Adjustment
Adjust f/ 0 -18" (0-46 cm) depths
features

Depth Indicator

Convenient depth-indicator ensures pipe-laying at uniform depth.

Flexible Head

Compression springs allow the head to pivot 30-degree side-to-side for tight turning.

Heavy Cast Coulter

Provides knife like slit in turf ahead of blade. Allows blade to move through turf with minimal tearing.

Isolators

Rubber isolators control the plow vibration amplitude.

Elliptical Vibrating Motion

Creates natural force in the direction of the machine, thus helping to pull pipe and cable through difficult soil conditions.



literature
Name Link
Operator's Manual Download
