ID # 37604763

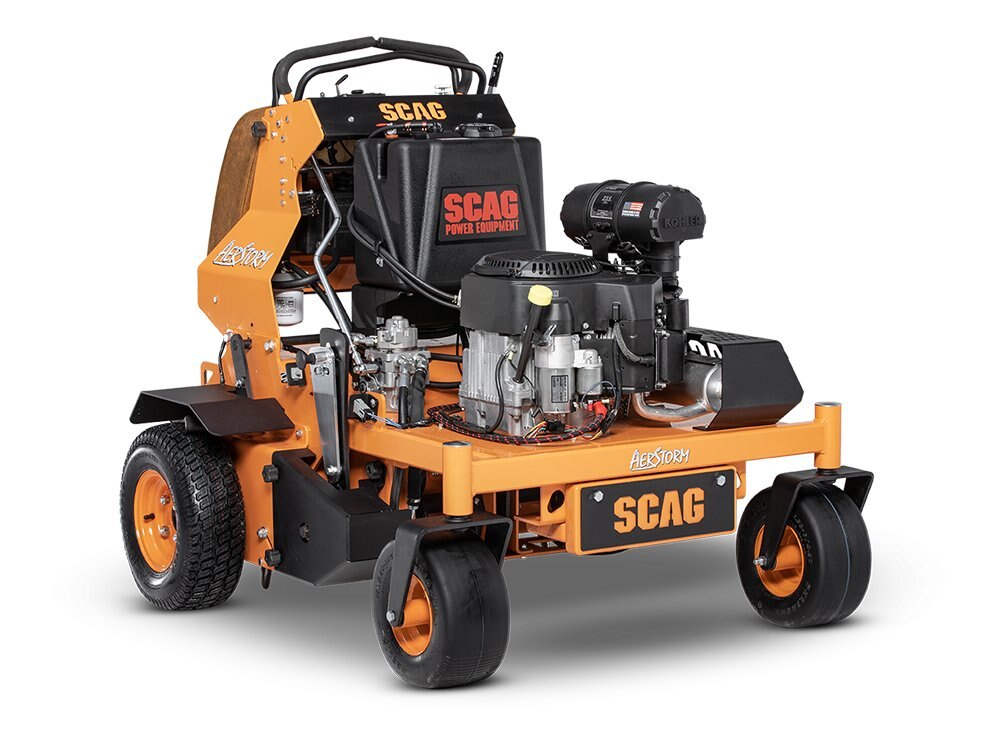

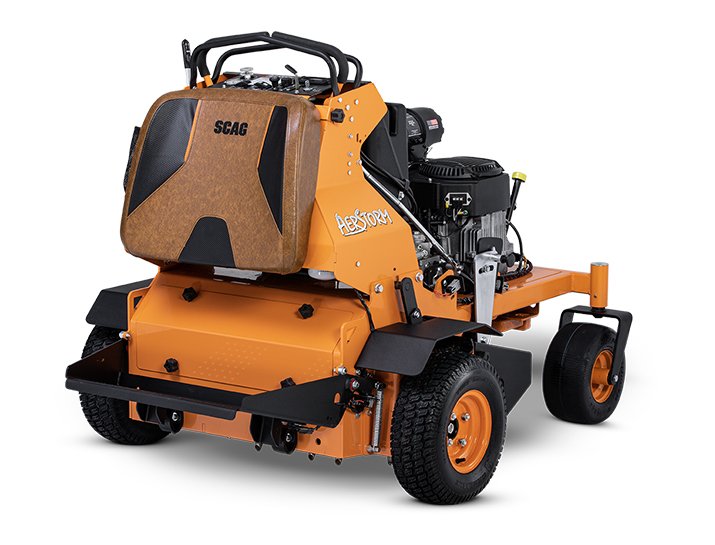

Scag AS30-23CV-DS AerStorm

  • Scag AS30 23CV DS AerStorm

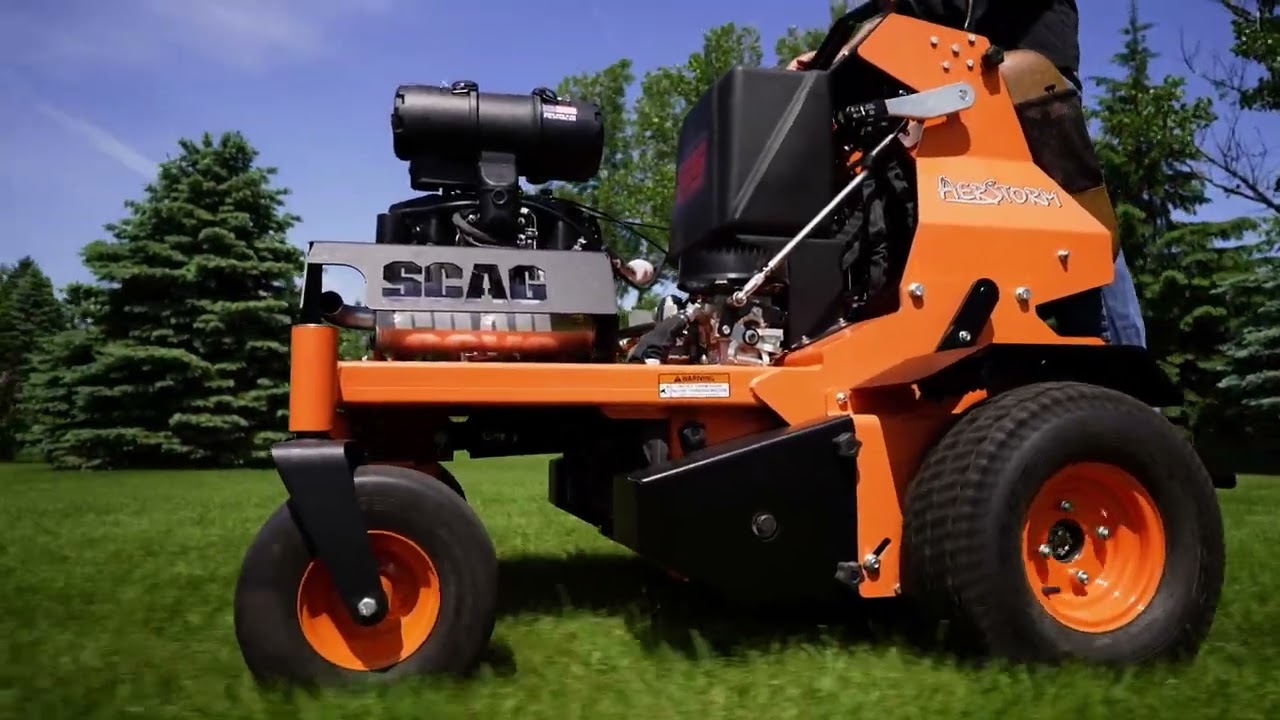

  • Video Button Maxresdefault
Videos
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

AerStorm

THE NEXT GENERATION OF PRODUCTIVITY

Aeration is vitally important for healthy turf, and it’s also an opportunity to expand your services. A new tool to tackle aeration with more efficiency, the stand-on AerStorm™ aerator allows you to get more done than ever before. Designed and engineered for long-lasting durability, improved productivity and all-day comfort, it’s time to take on your next challenge with the next generation of aeration.
Specifications
Model
AS30-23CV-DS
Category Name
Lawn Care
Year
2025
Sale Type
New
Manufacturer
Scag
Width
49.8"
Height
51.2"
Length
68.6"
features

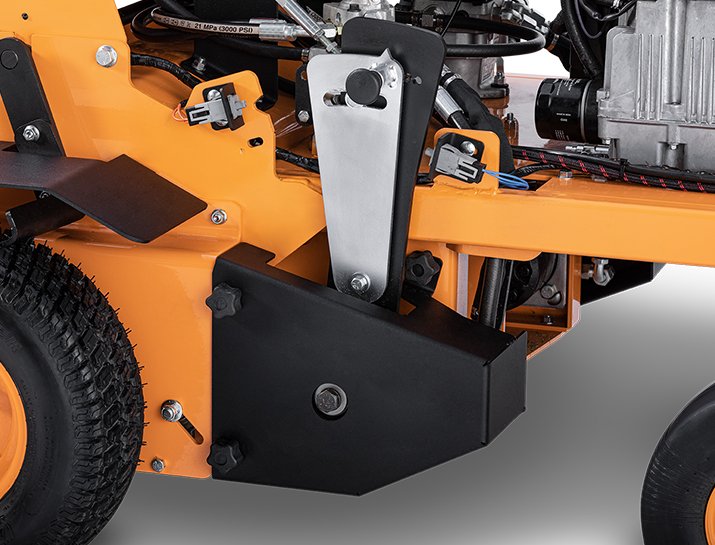

Scag AS30 23CV DS AerStorm Quick and Simple Aeration

EASY DEPTH ADJUSTMENT AND ENGAGEMENT

Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.

Scag AS30 23CV DS AerStorm Drive Control Levers

ACCESSIBLE CONTROLS

Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.

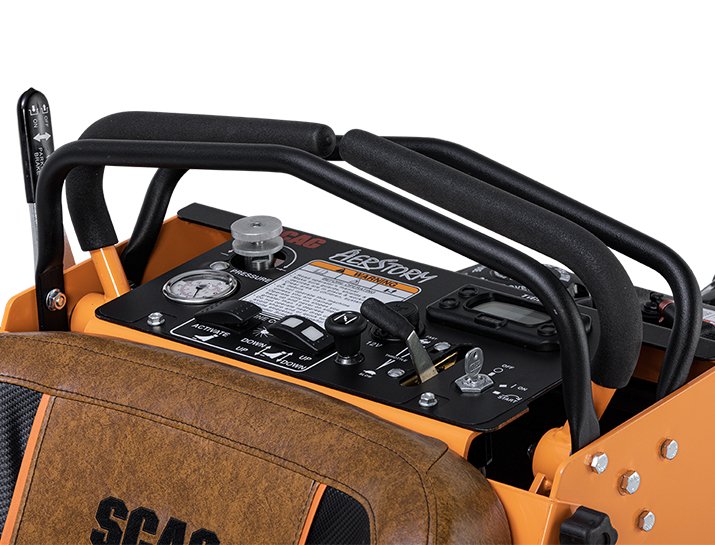

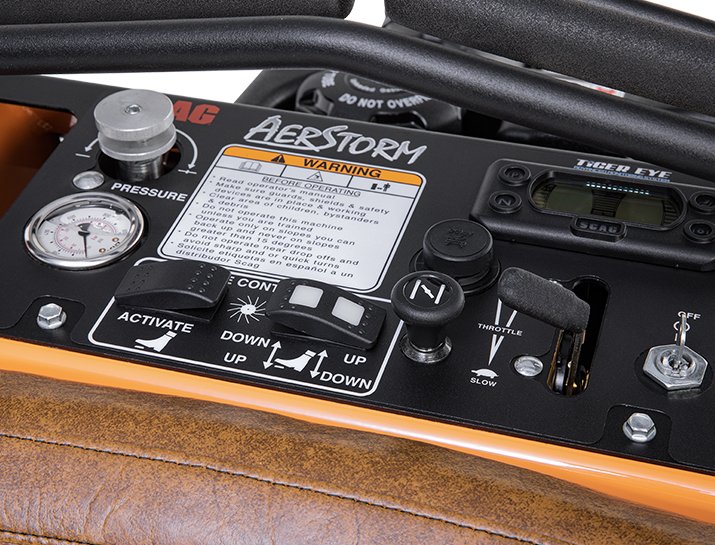

Scag AS30 23CV DS AerStorm Intuitive Instrument Panel

STAY IN THE LOOP

A full-featured and easy-to-view instrument panel keeps you informed of exactly what you need to know.

Scag AS30 23CV DS AerStorm Operator Platform

EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE

A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.

Scag AS30 23CV DS AerStorm Ease of Maintenance

MORE UPTIME

Removable cushion and lower panel allow quick and easy service access to hydro tank and tines.

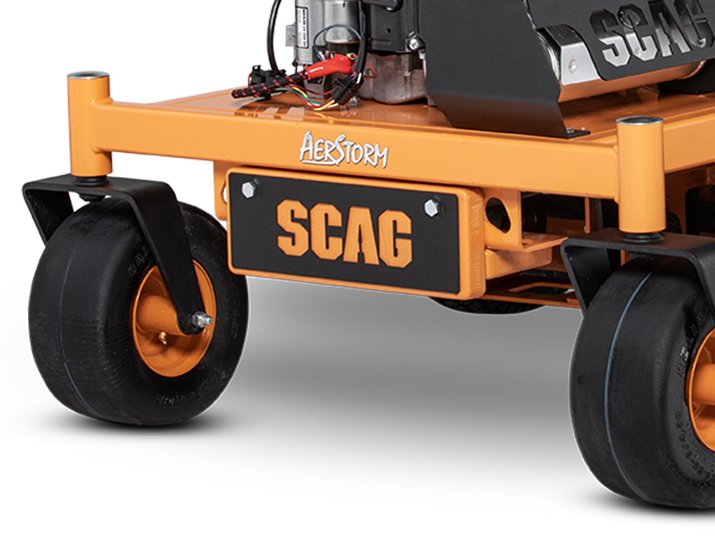

Scag AS30 23CV DS AerStorm Heavy-Duty Frame

SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE

Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.

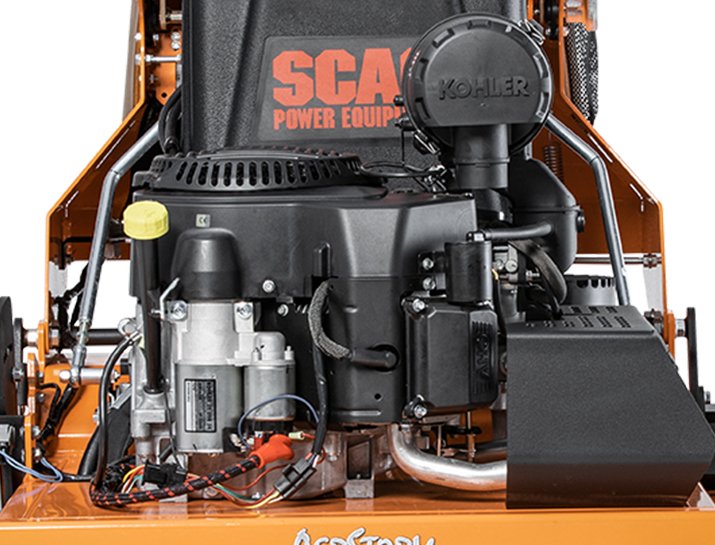

Scag AS30 23CV DS AerStorm Powerful and Efficient Engine

HUGE POWER, UP TO 23 HP

23 hp Kohler® Command Pro® engine packs the power you need alongside exceptional efficiency and dependable performance.
aerstorm models
engine specification
Type
4 cycle gas, twin-cylinder, air-cooled, OHV, vertical shaft engine
Brand
Kohler Command Pro
Model
CV732
Torque
40.3 ft-lbs. (peak)
Governor
Mechanical type governor with variable speed control set at 3600 rpm (±100 rpm), idle set at 1800 rpm (±150 rpm)
Cylinders
2 cast-iron sleeves
Horsepower
23.5 HP @ 3600 RPM
Displacement
747 cc (45.6 cubic inch)
General Type
Heavy-duty industrial/commercial
Exhaust Group
Single exhaust canister muffler
Oil Pump Group
Full pressure lube, with full-flow filter, 2 quart oil capacity
Fuel Pump Group
Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid.
Air Intake Group
Large capacity 2-stage canister air filter
Starter/Electrical/Charging System
12 volt “maintenance-free” sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated.
engine deck
Brakes
Lever actuated linkage to brakes on both drive wheels
Fuel Tank
5.5 gallon (20.8 liters) tank with molded-in cup holder
Thickness
1/4″ steel
Caster Wheels
13 x 6.5 – 6 Flat-Free (semi-pneumatic)
Operator Platform
Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference.
Drive Wheels/Tires
18 x 6.5 – 8 four-ply pneumatic tubeless, radius edge
Operator Comfort Pad
Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics
drive system
Type
Hydro drive with two variable displacement pumps and two cast-iron high-torque wheel motors for independent control of each drive wheel
Axles
1.25″ heavy-duty, straight motor shafts
Dump Valves
Allows for movement without engine running
Hydro Pumps
Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan
Safety Group
Footplate-actuated operator presence system interlock to engine kill
Wire Harness
14 and 16 gauge wire
Drive Wheel Motors
Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors
Forward Speed Range
0 up to 7.0 mph
Reverse Speed Range
0 up to 3.0 mph
Steering/Travel Control
Twin lever steering control with individual control to each wheel
Hydro Fluid Cooling Group
3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter
product specification
Type
Plug-style aeration. Mid/under-belly mount.
Tines
48 self-cleaning, replaceable, steel coring tines
Aerating Width
30″
Aerating Depth/Adjustment
1” to 4” in 1/2” increments. Simple and intuitive depth selection pin with easy-grip rubber knob.
Tine Activation & Pressure
Hydraulic tine engagement (raise and lower) via a foot-activated switch. Tine activation switch on the instrument panel prevents accidental engagement/disengagement while working or transporting. Adjustable hydraulic down-pressure helps to penetrate even the hardest and driest soils to ensure effective aeration performance in all conditions.
