Scag TLS20W-33BV Industrial Skid-Mount

  • Scag TLS20W 33BV Industrial Skid Mount
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

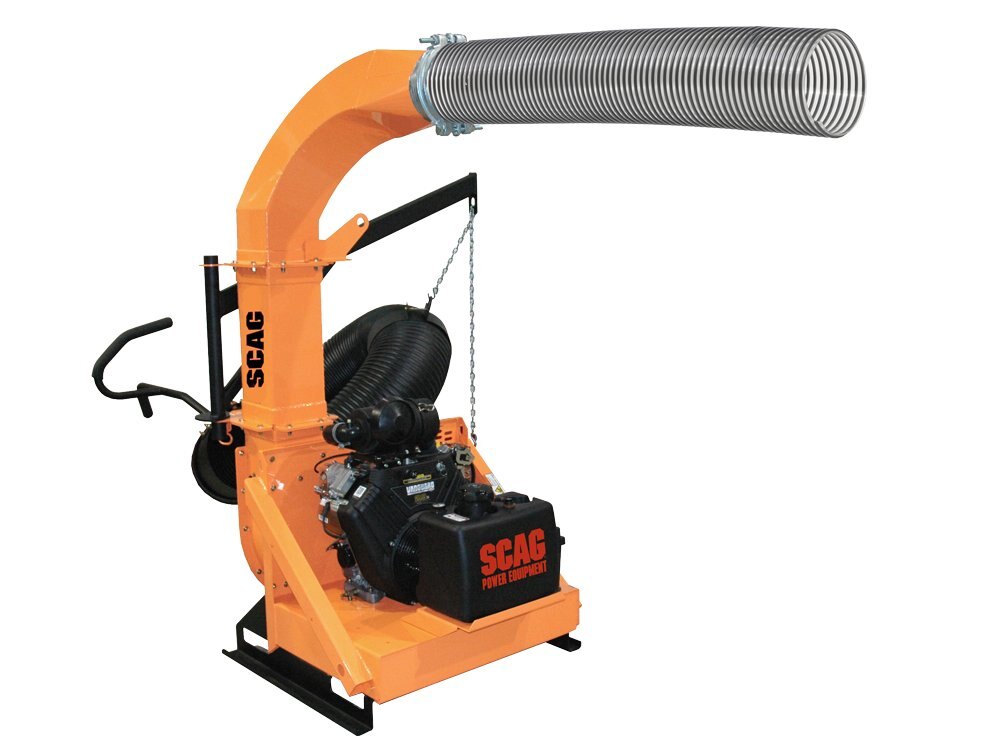

Industrial Skid-Mount

BUILT TO WORK

Powered by a 29 hp Vanguard® Big Block gasoline, V-twin engine, nothing escapes the Industrial Skid-Mount and its unmatched strength. With safe and convenient transportation features and a high-capacity fuel tank, this machine is built to optimize the productivity of your operation by sticking around for the long haul.
Specifications
Model
TLS20W-33BV
Category Name
Lawn Care
Year
2025
Sale Type
New
Manufacturer
Scag
HP
33
Engine
Briggs & Stratton® Vanguard® BIG BLOCK™, V-Twin, electric start
Height
75" (without skid mount attached)
Weight
675 lb
Warranty
2-Year Commercial; 2-Year Non-Commercial; 90-Day Rental
CFM Output
4,680
Unit Mounting
4" steel skid risers
Discharge Tube
Clear thermoplastic, 8" diameter
Throttle Control
Commercial-grade, all-steel mechanicals, plastic debris cover
Impeller Mounting
Tapered locking hub
Frame Construction
All-steel, welded
Hose Specifications
120" length, 12"-diameter intake hose, 0.045 black thermoplastic rubber, wire helix with wearstrip
Blower Housing Width
7.5"
Fuel Capacity / Tank
5.5 gallons – plastic tank with built-in fuel gauge
Impeller Construction
4-blade, 3/8"-thick blades, all-steel, welded
Impeller Diameter / Width
20" / 6.5"
Blower Housing Wear Plates
Standard: 1/4"-steel, replaceable
Blower Housing Construction
Removable back panel for easy impeller and wear plate access
features

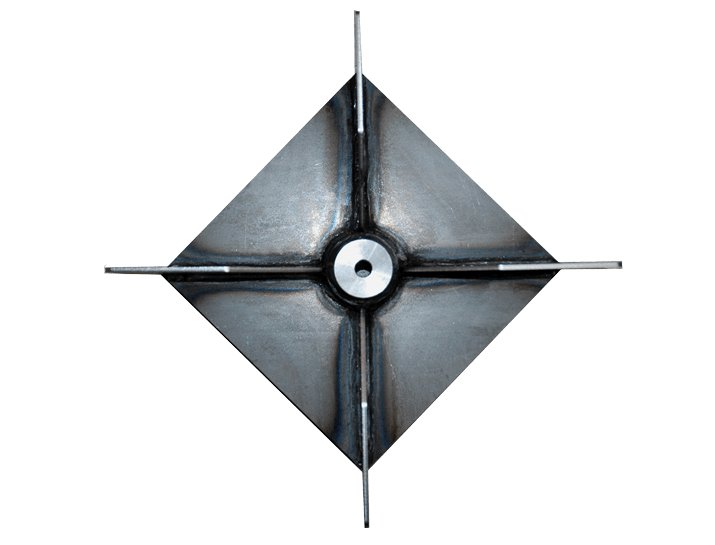

Scag TLS20W 33BV Industrial Skid Mount 4-Blade Impeller

Fabricated and Balanced, 20-Inch, 4-Blade Impeller

Within the unit’s 7.5″-wide housing is a welded-steel impeller with 3/8″-thick steel blades. Dynamically balanced for reduced vibration, longer life and less stress on the engine, these loaders boast an effective, high-output (up to 4,680 CFM), debris-reducing design..

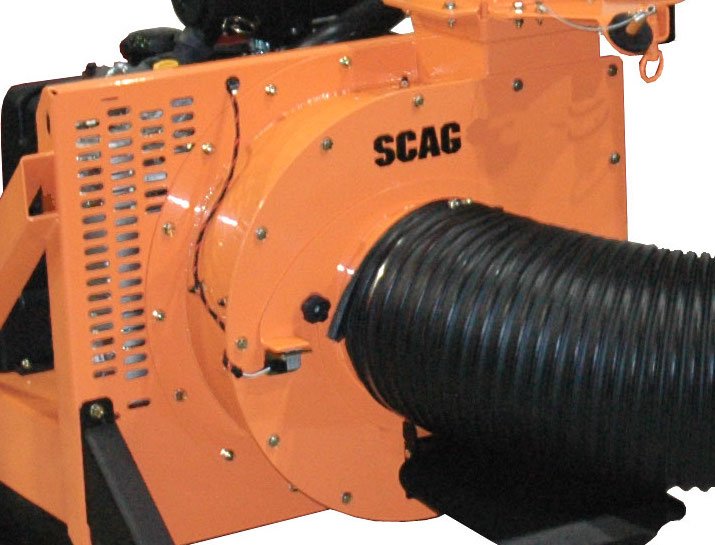

Scag TLS20W 33BV Industrial Skid Mount Smart Construction and Convenient Serviceability

Easy Access for Wear Plate and Impeller Service

1/4″-thick, bolt-in, replaceable wear liner extends service life. Removable rear-housing cover allows easy access to impeller and wear plates.

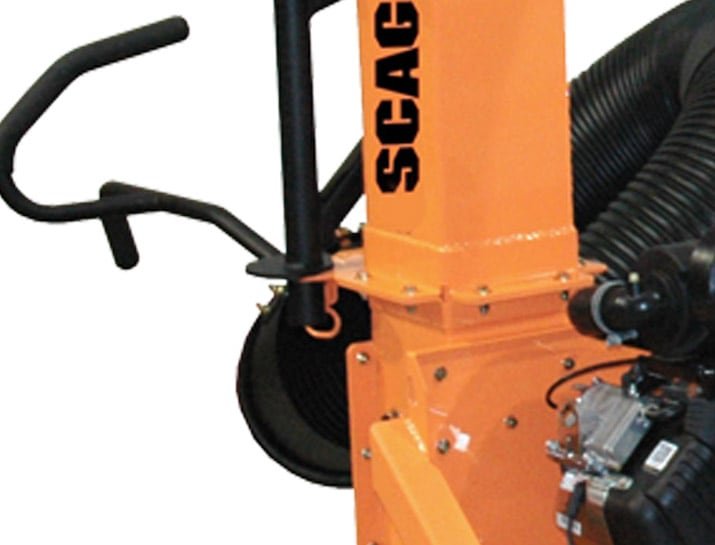

Scag TLS20W 33BV Industrial Skid Mount Locking Boom Arm and Intake Nozzle

Safe and Convenient Transport

Transport lock safely secures the boom arm and hose when not in use; nylon bearing delivers smooth movement. A transport pin locks the nozzle to the loader to help protect the hose during transportation. Quick-detach hose also allows for quick and easy transport, storage and cleaning.

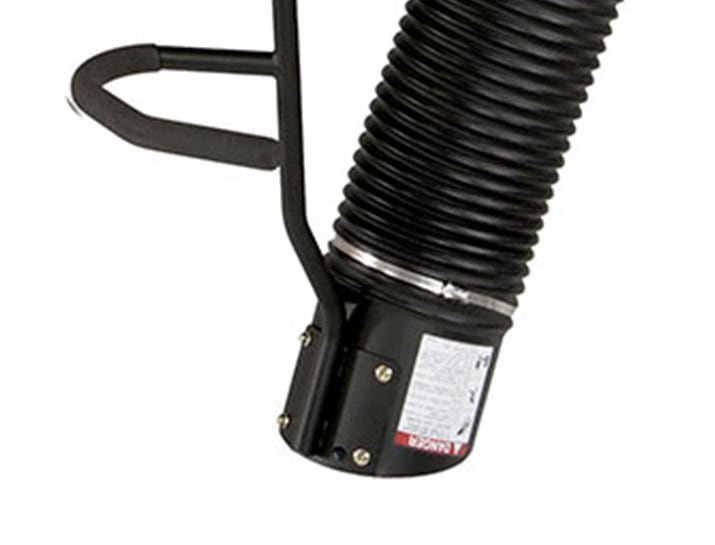

Scag TLS20W 33BV Industrial Skid Mount Ambidextrous Nozzle Handle

Easy Handling From Either Side: The Choice Is Yours

Padded, large-diameter handle is designed for increased leverage and easy maneuverability.

Scag TLS20W 33BV Industrial Skid Mount 12" Steel Intake Nozzle

Take It All In

Large, replaceable intake nozzle is beveled to make debris pickup easy.

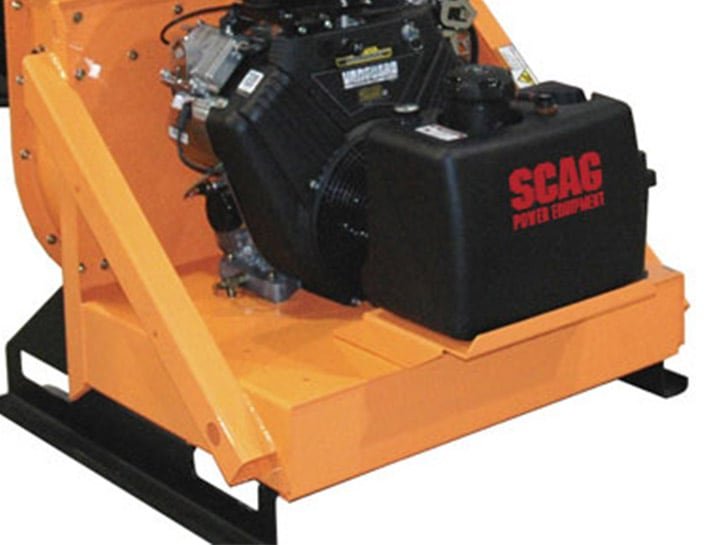

Scag TLS20W 33BV Industrial Skid Mount Skid-Mount

Standard 4" Skid Risers

Four-inch skid risers with fork pockets have multiple install points to fit a wider variety of applications, or they can be completely removed.

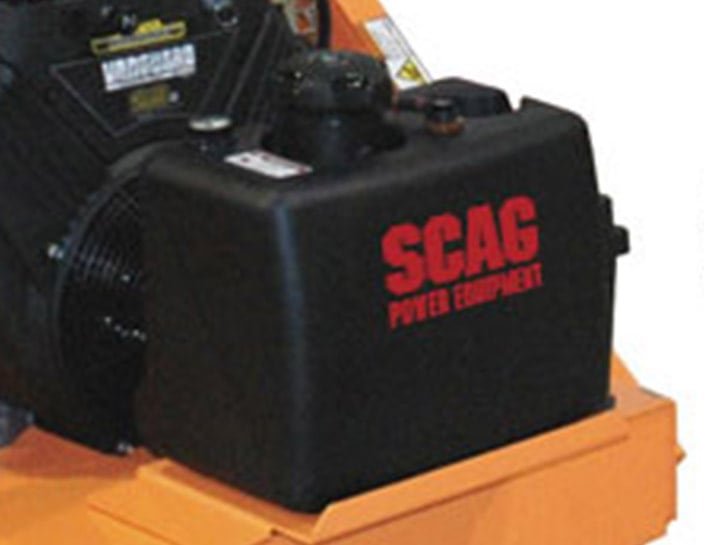

Scag TLS20W 33BV Industrial Skid Mount Large-Capacity Fuel Tank With Built-In Gauge

Hours and Hours of Run Time

High-capacity, 5.5-gallon, plastic fuel tank with large filler neck for easy filling keeps you on the job. Built-in fuel gauge adds convenience and eliminates guesswork.

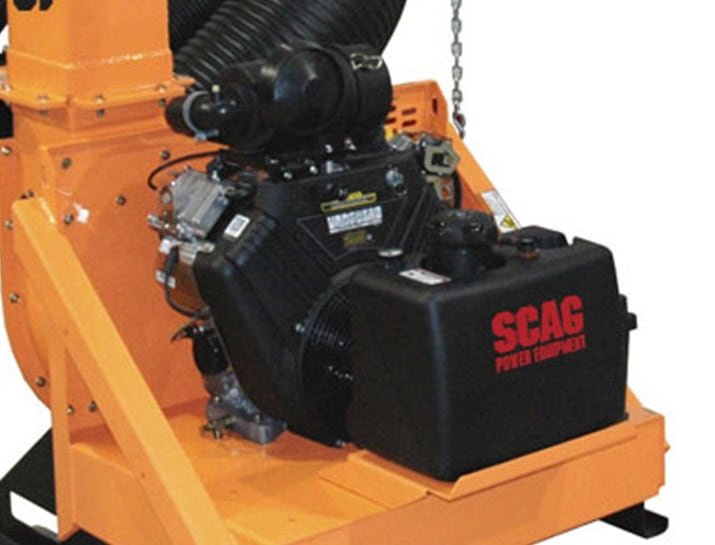

Scag TLS20W 33BV Industrial Skid Mount Powerful Engine

29 HP Vanguard BIG BLOCK

Powered by a 29 hp Vanguard® BIG BLOCK gasoline, V-twin engine with electric start.
