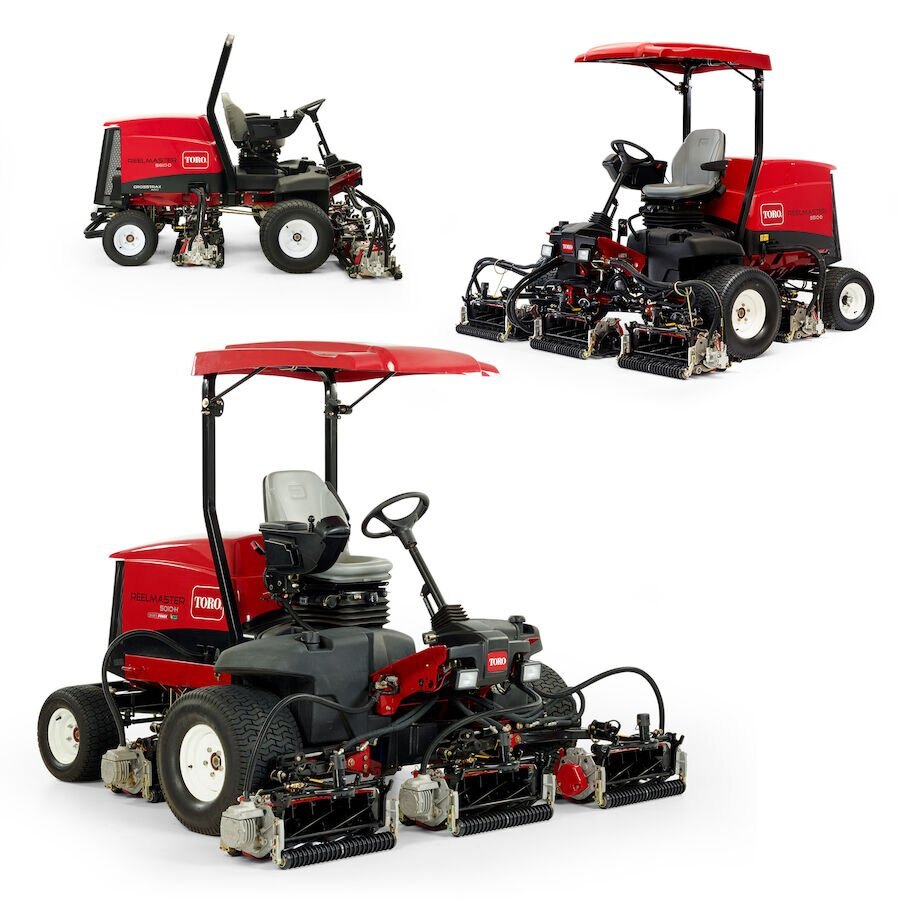

Toro Reelmaster 5610-D 43.5hp (32.4kW) Diesel Powered with 7" Cutting Reels

  • Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview
  • Improved access to routine service points and service components, along with a robust machine design, results in less frequent maintenance intervals and less time is required to perform maintenance tasks.
  • Optimized design and use of lightweight materials means less weight and turf compaction without sacrificing performance and functionality.
  • All of the indicators and controls to operate the unit are conveniently located on the right armrest. Control console pivots back for right hand entry and exit. Tilt steering, deluxe suspension seat, improved visibility and lower operating noise enhance the operator experience and help to reduce fatigue.
  • Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.
  • The Reelmaster is powered by a 44.2 hp (33 kW) Kubota diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.

The Reelmaster® 5610 features 7-inch Dual Precision Adjustment (DPA) cutting units to deliver an exceptional quality-of-cut and after-cut appearance. The Reelmaster 5610 includes a powerful Tier 4-compliant diesel engine equipped with our exclusive CrossTrax® all-wheel drive system for exceptional power and control. Excellent operator comfort and outstanding serviceability are already included in each of the industry-leading Reelmaster 5010 Series models.
Specifications
Model
3966
Category Name
Lawn / Garden
Year
2025
Sale Type
New
Manufacturer
Toro
Height
63" (160 cm) seat top, 85" (217.2 cm) top of ROPS.
Length
111" (281.9 cm)
Weight
2,756 lbs. (1,276 kg) (2WD), 2,866 lbs. (1,326 kg) (4WD)
Controls
Single foot-operated traction pedal, foot actuated mow speed limiter, foot actuated service and parking brake. Hand-operated key ignition switch, throttle, isochronous engine speed control, cutting unit raise/lower joystick, cutting unit engage switch, and headlight switch all positioned on right hand pivoting control console.
Mowing Speed
0 - 8 mph (0 - 12.8 km/h)
Oil Capacity
5 U.S. qt. (4.7 L)
Width Of Cut
100" (254 cm)
Fuel Capacity
14 U.S. gal. (53 L)
Overall Width
112" (274 cm)
Reel Diameter
7 in. (17.8cm)
Transport Width
92" (233.7 cm)
Number Of Blades
11, 8
Electrical System
Heavy-duty 12-volt battery, 570 CCA, 55 amp alternator. Electronic control unit is a microprocessor based, solid state control unit with diagnostic capabilities.
Bedknife Adjustment
Dual Precision Adjustment (DPA), bedknife to reel.
Height Of Cut Range
0.25" - 1.5" (6.4 mm - 38.1 mm)
Ground Speed - Forward
0 - 10 mph (0 - 16.1 km/h)
Ground Speed - Reverse
0 - 4 mph (0 - 6.4 km/h)
Hydraulic Fluid Capacity
15 U.S. gal. (56.8 L)
Clip Frequency/Backlapping
Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 - 2,000 rpm with a backlap speed of 200 rpm. Standard on-board backlapping.
Cooling System Description
Plate and bar radiator/oil cooler combination, 6.3 fins per inch,10 quart (9.5 liter) capacity.
Cutting Unit Type/Configuration
5-plex, hydraulically driven, balanced cutting units with adjustable rear weight transfer spring. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Cutting units also feature rear throw capability.
features

Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels

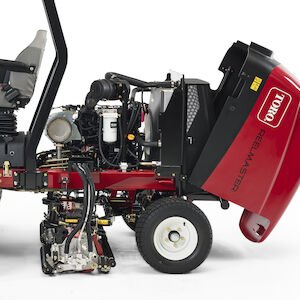

Simplified Maintenance

Improved access to routine service points and service components, along with a robust machine design, results in less frequent maintenance intervals and less time is required to perform maintenance tasks.



Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels

Yanmar® Diesel Engine

The Reelmaster is powered by a 36.8 hp (27.5 kW) Yanmar® diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.



Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels Lighter Weight Design

Optimized design and use of lightweight materials means less weight and turf compaction without sacrificing performance and functionality.

Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels

Improved Operator Comfort

All of the indicators and controls to operate the unit are conveniently located on the right armrest. Control console pivots back for right hand entry and exit. Tilt steering, deluxe suspension seat, improved visibility and lower operating noise enhance the operator experience and help to reduce fatigue.





Toro Reelmaster 5610 D 43.5hp (32.4kW) Diesel Powered with 7 Cutting Reels Kubota® Diesel Engine

The Reelmaster is powered by a 44.2 hp (33 kW) Kubota diesel engine that includes an exhaust after-treatment system that ensures machine emissions meet the EPA requirements and that your course can do its part for the environment.
