Category Name
Lawn / Garden
Length
136" (345 cm) with 27" cutting units, 141" (358 cm) with 32" cutting units
Weight
4,300 lbs. (1950 kg) - with full fluids, no cutting units.
Controls

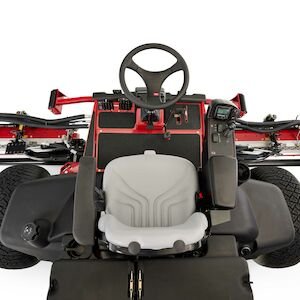

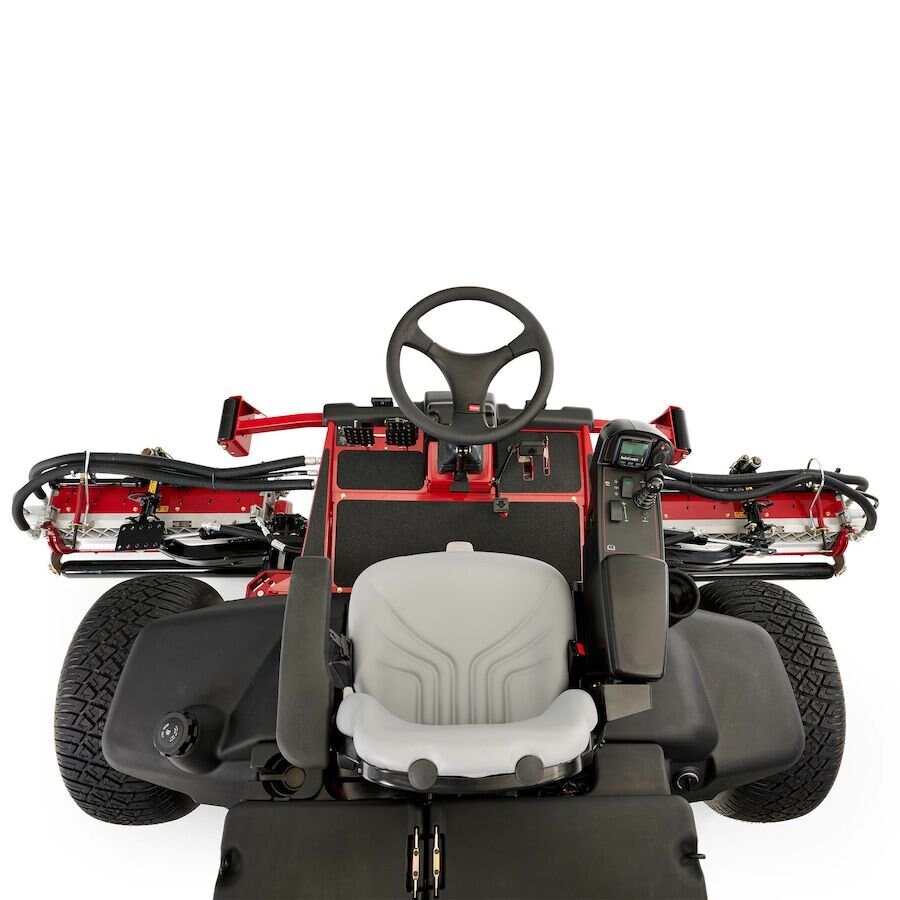

Ignition switch, LED headlight switch, hand-operated throttle, foot-operated traction pedal, joystick for cutting unit lift, mow/transport selector switch, lockable individual brake pedals, park brake.
Mowing Speed
0 - 7 mph (0 - 11 km/h)
Oil Capacity
6 U.S. qt. (5.7 L)
Width Of Cut
121" (307 cm) or 126" (320 cm)
Fuel Capacity
22 U.S. gal. (83 L)
Overall Width
121" (307 cm) with 27" cutting units, 126" (320 cm) with 32" cutting units
Reel Diameter
7 in. (17.8cm)
Transport Width
94" (239 cm)
Electrical System
12-volt, 650 CCA battery, 80 amp alternator. Overload protection with automotive type fuses.
Bedknife Adjustment
Dual Precision Adjustment (DPA), bedknife to reel.
Height Of Cut Range
8-Blade: 0.5" - 2.5" (13 mm - 64 mm) 11-Blade: 0.25" - 0.75" (6 mm - 19 mm)
Ground Speed - Forward
0 - 14 mph (0 - 22.5 km/h)
Ground Speed - Reverse
0 - 7 mph (0 - 11 km/h)
Hydraulic Fluid Capacity
8.25 U.S. gal. (31.3 L)
Clip Frequency/Backlapping
Manually controlled, variable reel speed for control of clip frequency. Reel speeds are incrementally adjustable between 200 - 1,650 rpm with a backlap speed of 200 rpm.
Cutting Unit Type/Configuration
Hydraulically driven, with adjustable rear weight transfer spring. Interchangeable to all positions with rear throw capability.
