ID # 39470153

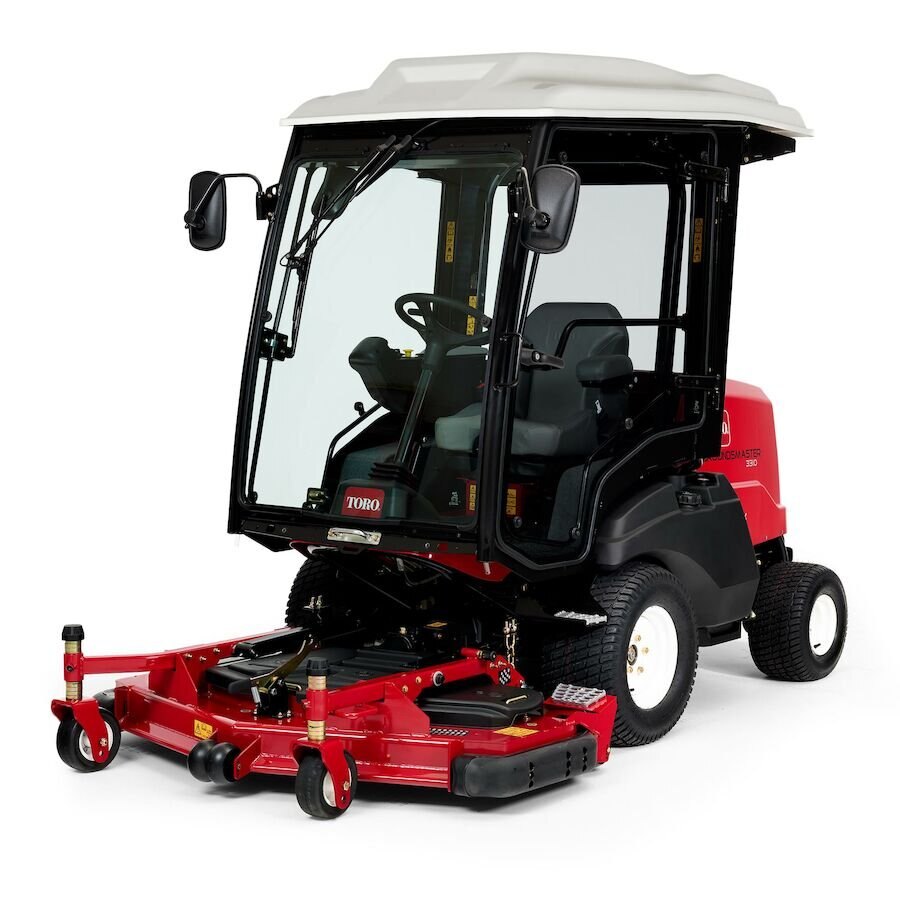

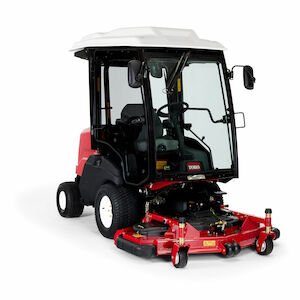

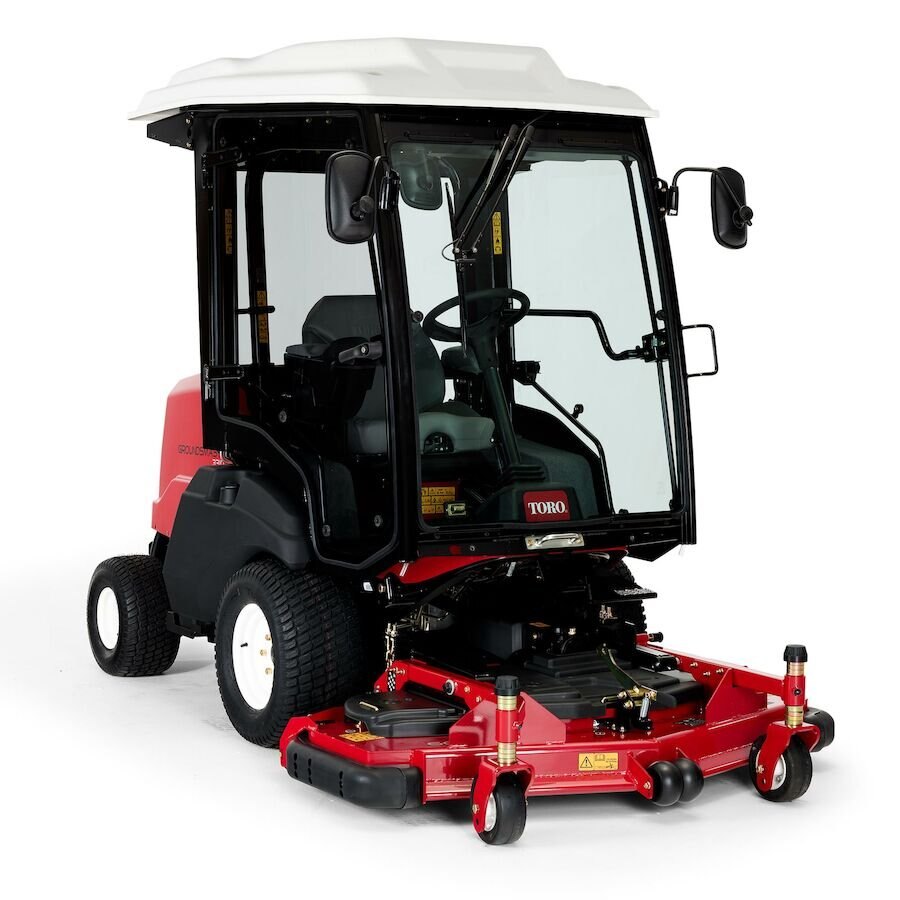

Toro Groundsmaster® 3310 - 36.8 hp (27.5kW) with CrossTrax® 4WD and All-Season Cab

Call for Price
Overview
  • Adjustable seating, tilt steering, and accessible controls ensure optimal operator comfort, with standard mechanical and air ride seat options available
  • CrossTrax® optimizes traction with full-time, bi-directional 4-wheel drive for challenging terrain
  • The deck shells are made from durable 7-gauge welded steel for enhanced longevity
  • A standard Rollover Protection System (ROPS) with a seat belt protects operators during rollovers and tipovers. It can be temporarily unlocked and folded down when vertical clearance is limited, such as when loading onto an enclosed trailer
  • With speeds up to 15 mph (24 km/h) and ground clearance of 7.8" (19.8 cm) or 8.3" (21.1 cm), you can easily navigate curbs and reach job sites that other mowers can't access
  • Innovative tilt-up design allows rotary decks to tilt nearly 90º for easy maintenance and cleaning while keeping the driveline intact
  • Bullnose bumper, rugged spindles, and 7-gauge high-strength steel decks are designed for all mowing applications
  • Choose between a 24.7 hp (18.4 kW) or a 37.4 hp (27.9 kW) Tier 4/Stage V emission-compliant Yanmar diesel engine
  • Move snow or clear debris... all from the comfort of the air-conditioned and heated cab
  • Real-time service reminders, alerts, and diagnostic information are easily accessible to the operator for better control
  • Cast iron spindle housings result in greater stability and strength, providing longer deck and spindle life
  • The ¼ inch (6 mm) heat-treated alloy steel blades resist flexing and wear, ensuring a crisp cut consistently

The Groundsmaster® 3310 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3310 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and all-season cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3310 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3310.

Specifications
Model
31903A
Category Name
Lawn / Garden
Year
2025
Sale Type
New
Manufacturer
Toro
Height
89" (226 cm)
Length
107" (271.7 cm)
Weight
2,486 lbs. (1128 kg)
Charger
On-board 100-240V, 12-16A, 3.3 kW charger
Wheelbase
51.5" (130.8 cm)
Oil Capacity
5.5 US qt (5.2 L)
Width Of Cut
72" (183 cm)
Overall Width
53.1" (134.8 cm)
Ground Clearance
8.3" (21 cm)
Electrical System
12V maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 40-amp alternator. Easy access to fuse panel.
Height Of Cut Range
1” to 6” (25-152 mm) adjustable in 0.5” (12.7 mm) increments
Hydraulic Cylinders
Twin 2.5" (6.4 cm) bore, 1.25" (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.
Ground Speed - Forward
0 - 15 mph (0 - 24 km/h)
Ground Speed - Reverse
0 - 6 mph (0 - 9.7 km/h)
Hydraulic Fluid Capacity
4.7 Gal. (17.8 L)
Cooling System Description
Rear-mount, cross flow radiator with 8.5 fins per 1" (25 mm), 8 quart (7.6 liter) capacity
Mowing Rate (Productivity)
Up to 7.3 acres/hr (2.9 hectacres/hr) with 60" deck Up to 8.7 acres/hr (3.5 hectacres/hr) with 72" deck
Cutting Unit Type/Configuration
72" (183 cm) Side Discharge Deck
features

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

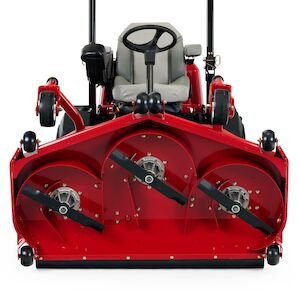

7-Gauge Welded Steel Decks

The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab CrossTrax®

CrossTrax® powers through challenging terrain by optimizing traction with full-time, bi-directional 4-wheel drive.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab Folding Rollover Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

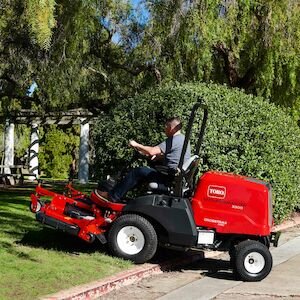

Easily Move Between Jobsites

With ground speeds up to 12.5 or 15 mph (20 km/h or 24 km/h) and either 7.8" (19.8 cm) or 8.3" (21.1 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

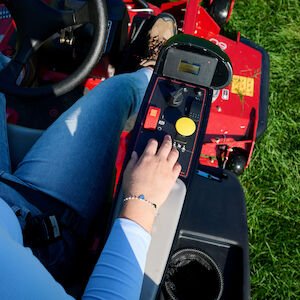

InfoCenter™ Control Panel

Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips. Precisely control SmartPower, Turnaround, Battery Reserve and Virtual Pedal Stop features directly from the InfoCenter™.



Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab Simple Maintenance

Innovative tilt-up design makes maintenance and cleaning simple. Rotary decks tilt almost 90º while keeping the driveline intact.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab Tackle Any Terrain

Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for any conditions.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab Powerful Yanmar® Engines

Choice of efficient 24.7hp (18.4 kW) or powerful 37.4hp (27.9 kW) Tier 4/Stage V emission compliant Yanmar diesel engines.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

All-Season Cab

Move snow or clear debris... all from the comfort of the optional heated cab.



Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab Superior Operator Comfort

Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.

Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

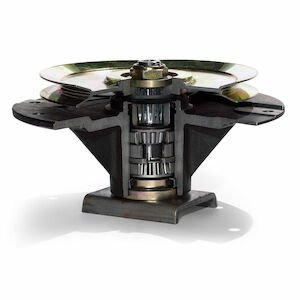

Industry's Toughest Spindle Assembly

The cast iron spindle housings feature a massive 9" (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. The high-efficiency, tapered roller bearings offer greater durability, which means more stability and strength, resulting in longer deck and spindle life.



Toro Groundsmaster® 3310 36.8 hp (27.5kW) with CrossTrax® 4WD and All Season Cab

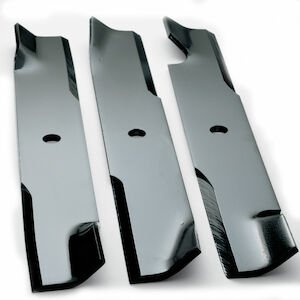

Steel Blades

The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.



literature
Name Link
GMe3200_Sell_Sheet_110223.pdf Download
